DOUBLE ACTING SEAL
PROFILE W-GT
Based
on the O’ring function principle with two non
extrusion rings (RO), what insures the non extrusion
in high working pressures. It can be used in grooves for an O’ring
with two non extrusion rings (RO). Its working
temperature is about 200 ºC according to the type of compounds used in
the products.

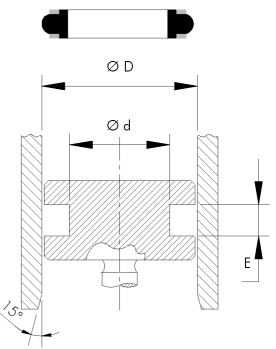

Piston
assembly: it admits stretching up to 5 % in diameter (d) keeping the
section.

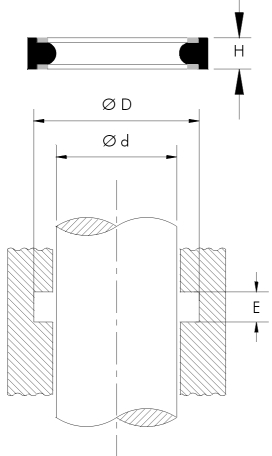

Rod
assembly: it admits stretching up to 1,5 % in diameter (d) keeping the
section.
